CUSTOM SHADE SAILS – MEASURING PROCEDURE
This method of obtaining Shade Sail measurements for custom made sails must be followed to enable the correct design and fabrication of your shade sail.
By following the attached procedure you will greatly assist in the reduction of shade sail manufacturing errors caused by confusion between the person measuring the Shade Sail and the persons designing and manufacturing the Shade Sail.
| METHOD: | All measurements should be taken from fixing point to fixing point (ie: eye to eye). We will make necessary reductions for fixings and stretch. |
|
| UNITS: | All measurements on drawings to be in millimeters OR feet and inches | |
| ACCURACY: | All measurements to be to the nearest 10mm or nearest 1/2 inch. All outside perimeter measurements are required and please supply as many diagonal measurements in addition to those *REQUIRED as possible. Diagonal dimensions are critical in the fabrication/design process to facilitate the manufacture of a correct fitting Shade sail. |
IE: A 4 sided Shade Sail requires six measurements.
 |
4 perimeter measurements plus 2 diagonals NOTE: One diagonal is * REQUIRED |
and a six sided ShadeSail requires 15 measurements.
 |
6 perimeter measurements plus 9 diagonals NOTE: 3 diagonals are * REQUIRED |
IMPORTANT!!

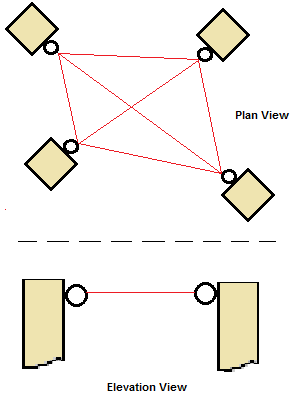

Measurements are to be taken from fixing point to fixing point as shown.
These MUST be
Actual dimensions from your mounting point to mounting point.
Actual dimensions from your mounting point to mounting point.
We will make necessary reductions for fixings and stretch.
